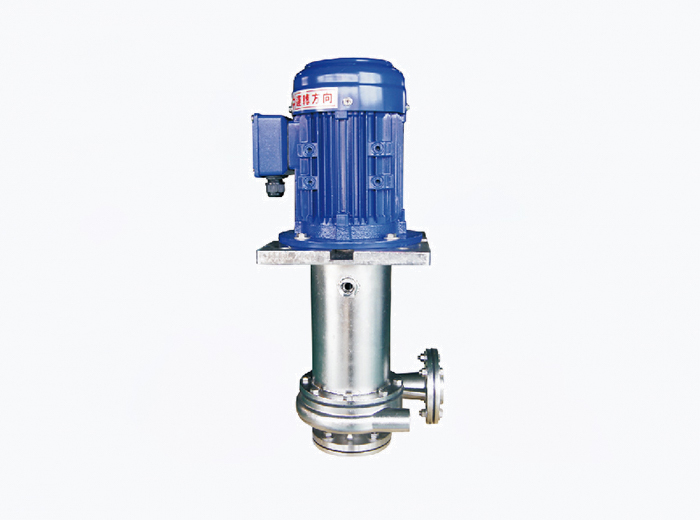

Stainless steel idling vertical acid and alkali resistant pump

Stainless steel idling vertical acid and alkali resistant pump

Model Description

1. Model number:YDS

2. Caliber:25:1" , 40:1-1/2" , 50:2" 3. Proportion:VK:1.1 VP: 1.4

4. Horsepower:1/2:1/2HP, 1:1HP, 2:2HP, 3:3HP, 5:5HP

5. Frequency:5:50HZ, 6:60HZ

6. Rubber material:V-VITON, T-TEFLON

7. Pump material:S:SUS316

8. FB-Explosion-proof motor

Product Features

Adopt stainless steel 316 precision casting, no sand hole problem, high efficiency impeller.

Suitable for various acid and alkali liquids, recyclable, high temperature resistant.

Without shaft seal design, it will never be damaged due to dry running. It is designed with a seal ring to prevent acid gas from entering the bearing, and an overflow guide groove.

The dry liquid seal can prevent the motor and bearing from being corroded by chemical gas, and prolong the service life of the motor and pump.

The impeller is corrected by dynamic balance, with low noise and low vibration rate.

The pump volume is small, suitable for the inside and outside of the tank design.

Performance Curve

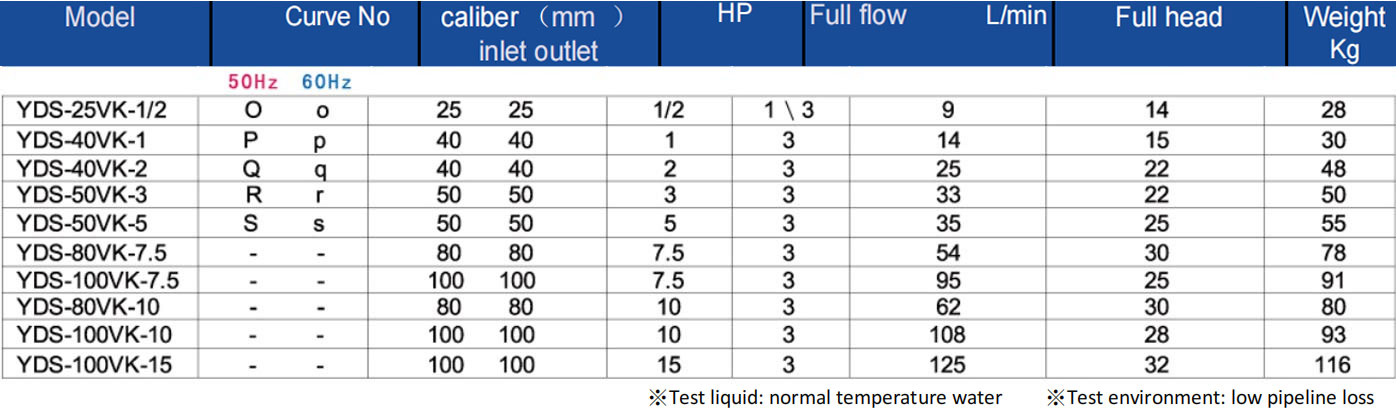

Specifications
