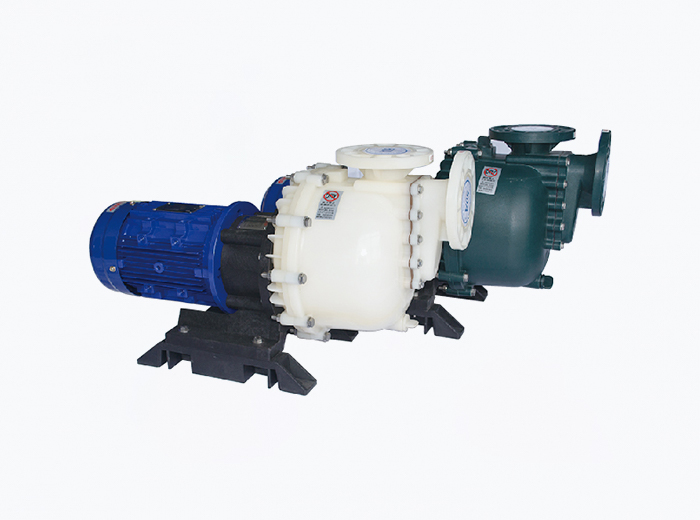

Coaxial self-priming acid and alkali resistant pump

Coaxial self-priming acid and alkali resistant pump

Model Description

1.Model number:YB-FRPP,YBC-CFRPP,YBP-PVDF

2.Entrance and exit diameter:40:1-1/2” 50:2” 75:3”

3.HP:11:1φ1/2HP 13:3φ1/2HP  01:3φ1HP  02:3φ2HP  03:3φ3HP  05:3φ5HP

4.Pole number:2:2P 4:4P

5.Rubber material:N-NBR,E-EPDM,V-VITON

6.A-tongue check valve(The inlet is higher than the liquid level)

B-Tongueless check valve(The inlet is lower than the liquid level)

7. L-Low lift, H-High lift

8. Fixed ring:C-CERAMIC, S-SIC

9. Rotating ring: C-CARB0N, S-SIC

10.Spring: H-HASTELLOY-C, S-SUS316

11. FB: Explosion-proof motor

12. KZ-Air-resistant transformation

Product Features

Unique shaft seal design, the built-in type adopts Teflon Bellow Seal self-cooling design.

Self-priming design, the self-priming force is particularly strong, the self-priming type can reach 20ft, and there is a check valve design to prevent the liquid in the pump from flowing back.

Acid and alkali resistance, strong corrosion resistance, materials are CFRPP, FRPP, PVDF (Teflon).

To prevent the inhalation of other substance a foot valve should be installed at the inlet. To prevent the instantaneous backflow phenomenon during shutdown, which will cause damage to the pump body and the pump idling a check valve should be installed at the outlet.

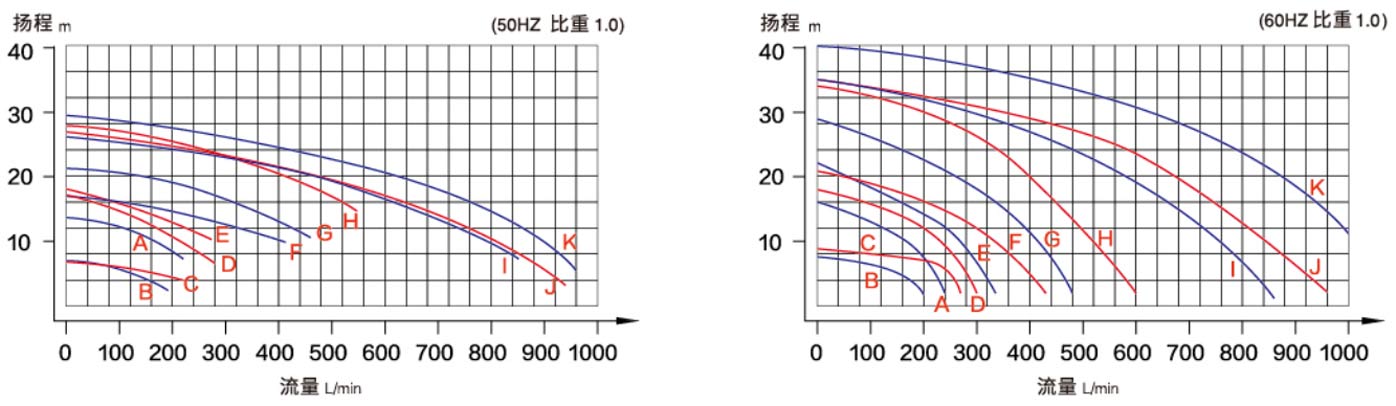

Performance Curve

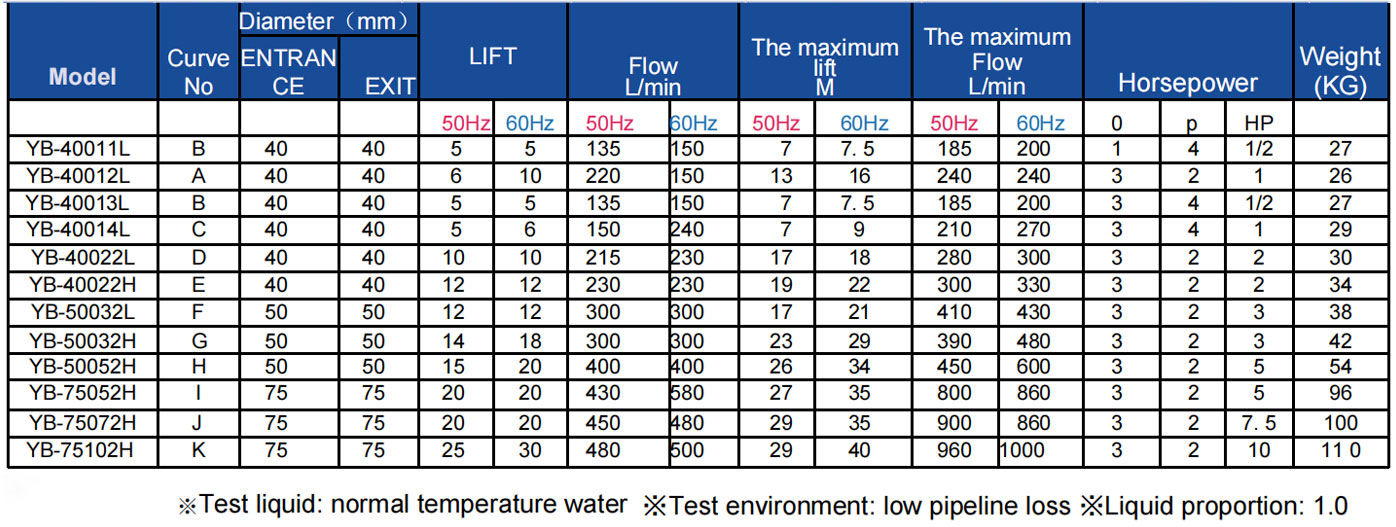

Specifications
