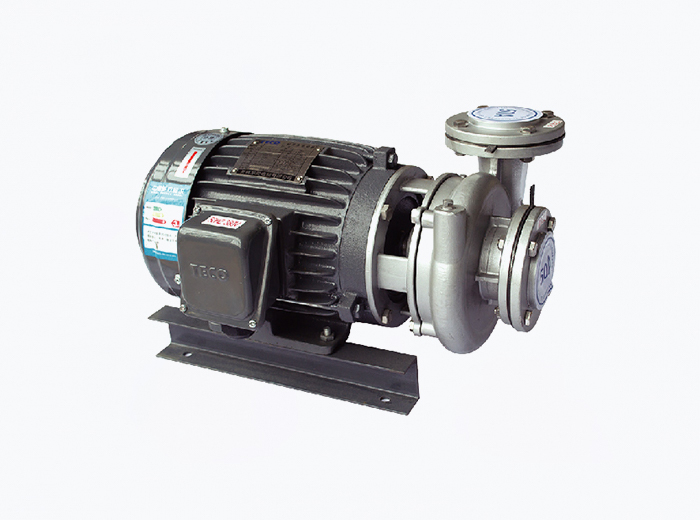

Stainless steel coaxial centrifugal pump

Stainless steel coaxial centrifugal pump

Model Description

1.Model number: YS

2.Entrance and exit diameter:25:1”40:1-1/2” 50:2”65:2-1/2” 75:3”100:4"

3.HP: 1/2:1/2HP 1:1HP 2:2HP 3:3HP 5:5HP 7.5:7.5HP 10:10HP 15:15HP  20:20HP  25:25HP 30:30HP  40:40HP

4. Shaft seal material:C-ceramics(general type),S-SIC(Both acid and alkali)

5. Pump material: 4:SUS304, 6:SUS316

6. Rubber materia:N-NBR,V-VITON

7. Special specification:H-high lift

8. Frequency:5:50HZ,6:60HZ

9. FB-Explosion-proof motor

Product Features

Specially designed impeller, high efficiency, long life, low noise, small body, and excellent water absorption and pumping performance, stainless steel shaft, durable, horsepower l/2HP~40HPo.

To avoid damage to the pump the material of the pump body and shaft seal are selected according to the properties of the chemical liquid.

Applicable to various industries such as pure water industry, chemical industry, surface treatment industry, etc.

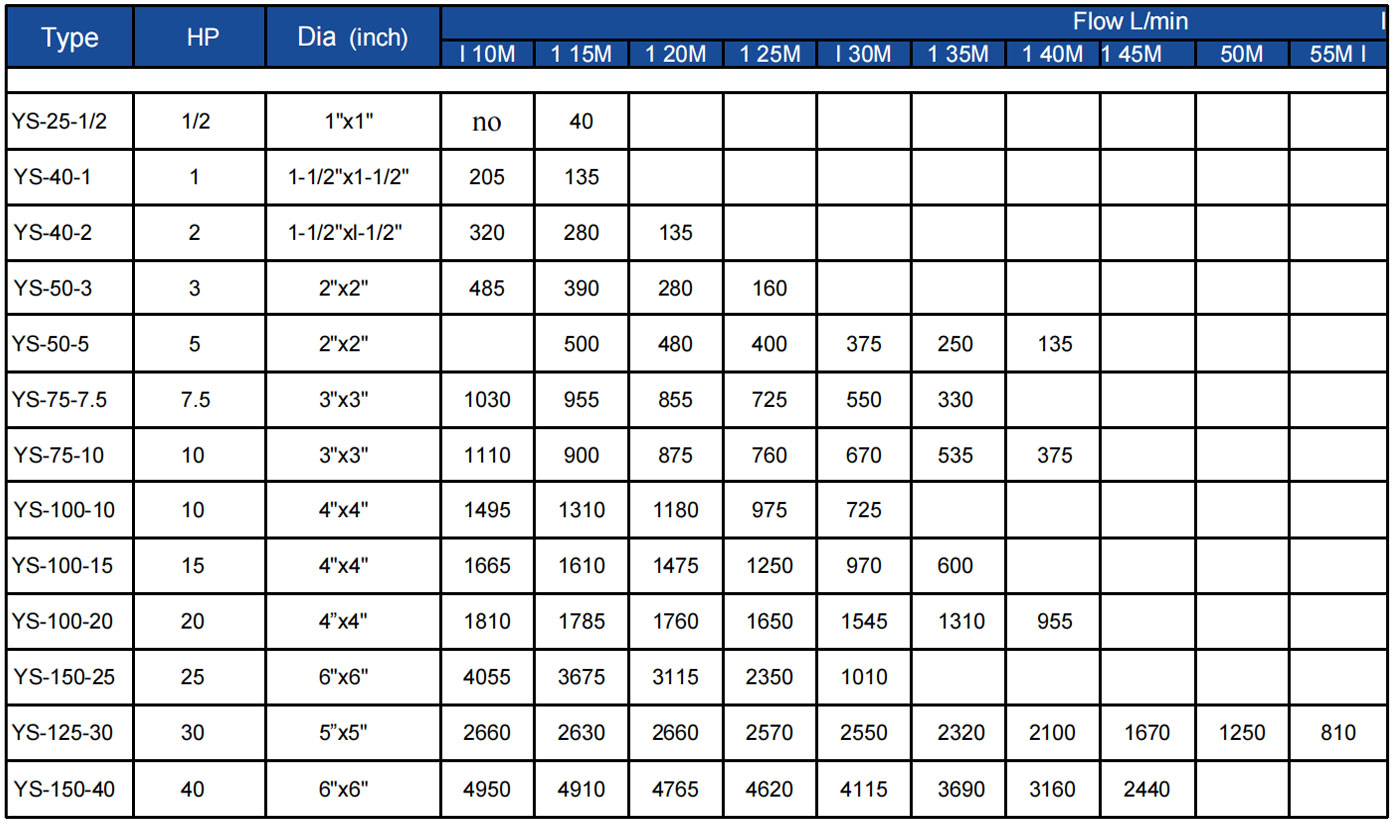

Performance Curve
Specifications
